Kada-well 2000 die height indicator
-
Views:
79 -
Product Code:
KDH/L-2000 -
Price:
Contact
The Kada-well 2000 Series is the new flagship, setting a new standard for professional die height indicators. It's the culmination of years of R&D, combining Kada-well's most elite technologies. With its heavy industrial-grade 30G durability, the 2000 Series pairs precise monitoring with intelligent diagnostic features and versatile connectivity options. It fully meets the strictest demands of modern manufacturing plants and top-tier press operators, providing a comprehensive solution for precision, reliability, and advanced control in the stamping process.
KADA-WELL

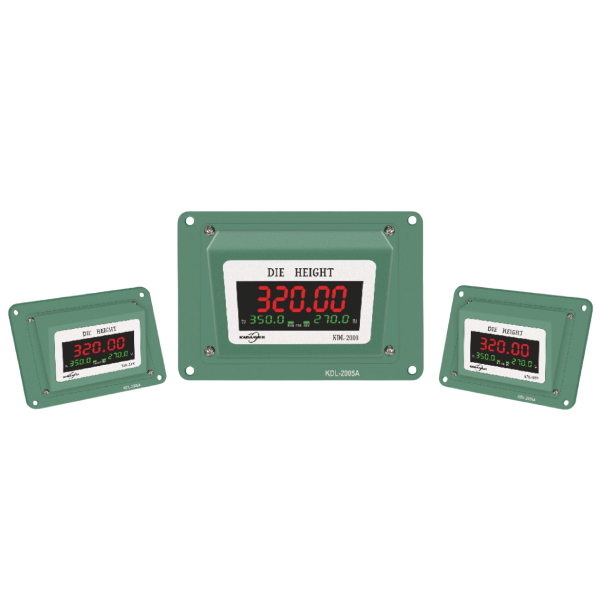

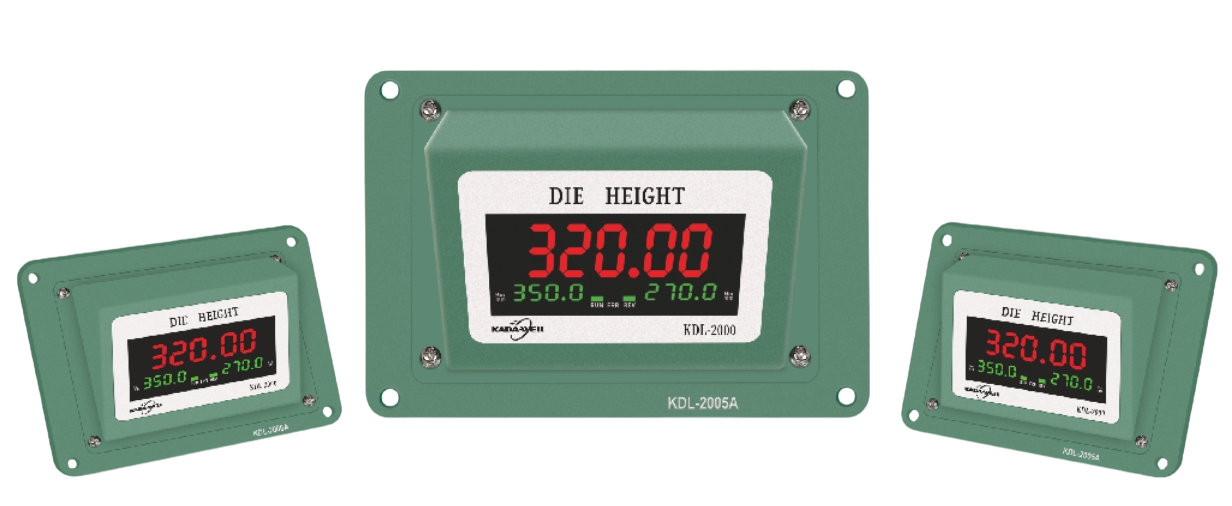

Die Height Indicator 2000 Series (KDH/L-2000)
The New Flagship - Redefining Monitoring Standards
🛡️ 30G Anti-Vibration · 🚦 Diagnostic Indicators · 🔗 Intelligent System Integration
The New Flagship: The Pinnacle of Precision and Durability
The Kada-well 2000 Series is the flagship product line, setting a new standard for professional die height indicators. It represents the culmination of years of research and development, embodying the finest technologies Kada-well has to offer.
With heavy industrial-grade 30G durability, the 2000 Series combines precise monitoring with intelligent diagnostic features and versatile connectivity options, fully meeting the strictest demands of modern manufacturing plants and top-tier press operators.
✨ Flagship Features of the 2000 Series
🛡️ Heavy Industrial-Grade Durability (30G)
A 30G anti-vibration rating and IP65 protection ensure the device operates stably and durably in the harshest stamping environments.
🚦 Instant Monitoring & Diagnostics
Displays 3 parameters (current, upper/lower limits) along with 3 status lights (RUN/ERR/REV) for rapid machine status diagnosis.
📶 Safe & Fast Wireless Setting
The external wireless setter allows technicians to calibrate parameters safely, quickly, and conveniently.
🔗 Powerful & Flexible PLC Integration
Robust AC (240V/500mA) and DC (30V/200mA) contact outputs are ready for deep integration into the press's control system.
PRESTEC - Your Integration & Technical Support Partner
As the official distributor of Kada-well in Vietnam, PRESTEC provides not just the product, but a complete service package:
- Solution Consulting: We help you select the right model and options (e.g., 0.001mm accuracy) for the 2000 Series.
- Installation & Integration: We install the device on your press and connect the signals to your PLC system.
- Operational Support: We provide training on using the wireless setter and offer prompt technical support.
Equip Your Press with the Latest Flagship Monitor
Contact PRESTEC today for a consultation and quote for the Kada-well 2000 Series die height indicator.
Hotline: +84 795 215 864 | Email: Sales@suamaycongcu.com
REQUEST A QUOTEDetailed Technical Specifications
| Power Supply | DC 24V (±10%) |
| Power Consumption | 3W |
| Shock Resistance | 30G |
| Protection Class | IP65 |
| Max Rotation Speed | 1200 RPM |
| Operating Temperature | -20°C to +70°C |
| Display Precision | 0.01mm [Optional 0.001mm] |
| Display Range | 0.01-999.99mm [Optional 0.001-99.999mm] |
| Setting Mode | External wireless setting device |
| Display Group | 3 LED groups (Current value, Upper limit, Lower limit) |
| Status Indicators | 3 LEDs: RUN (Operating), ERR (Error), REV (Reverse) |
| Output Contact (AC) | 2 sets of normally closed contacts (NC), Voltage AC240V, Current 500mA |
| Output Contact (DC) | 2 sets of normally closed contacts (NC), Voltage DC30V, Current 200mA (NPN or PNP) |
*Parameters in brackets [...] are options that need to be customized in advance.
