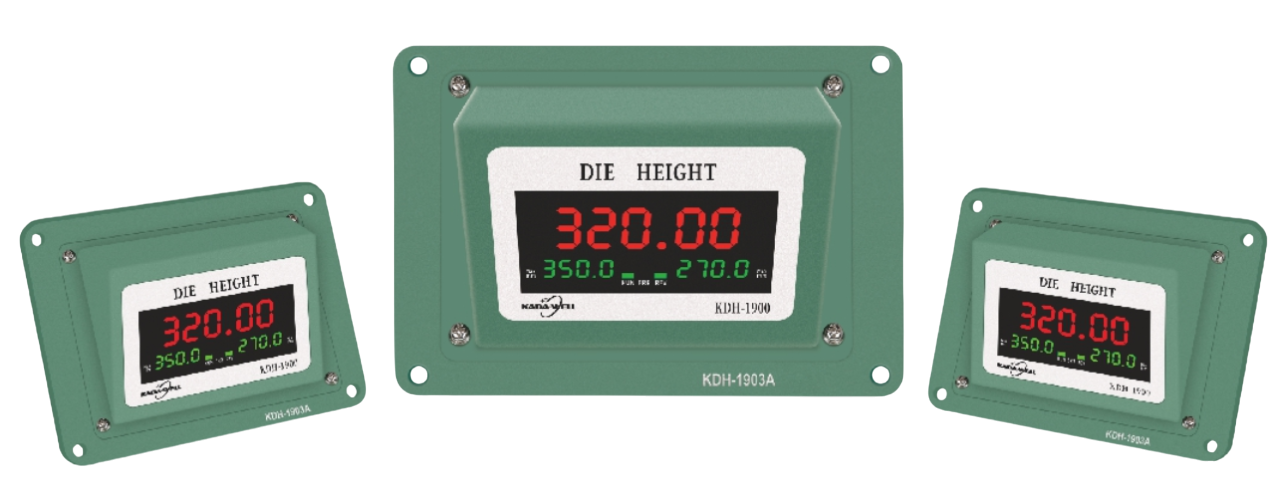

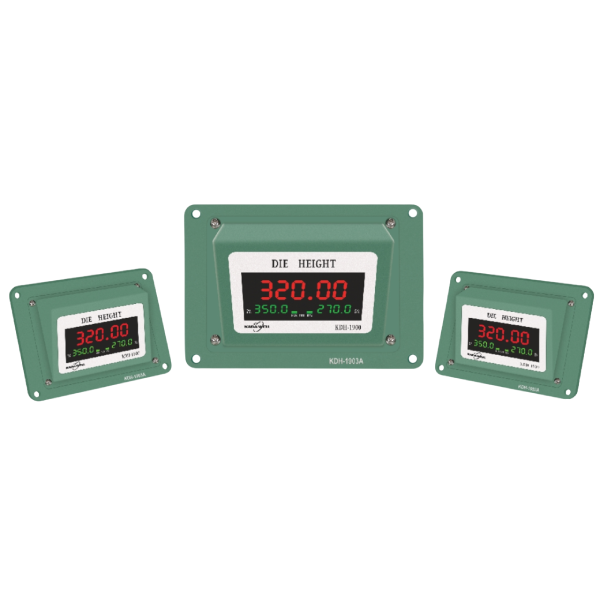

Kada-well 1900 die height indicator
-
Views:
76 -
Product Code:
KDH/L-1900 -
Price:
Contact
The Kada-well 1900 Series is a professional-grade die height indicator, engineered for experts and the most demanding industrial environments. Featuring 30G shock resistance and an IP65 protection rating, it guarantees stable and durable performance. The wireless setting device provides superior safety and convenience for technicians. Its display shows 3 critical parameters (current, upper/lower limits) alongside 3 diagnostic indicators (RUN/ERR/REV) for at-a-glance monitoring. Powerful AC/DC outputs enable deep integration with PLCs, making it an essential tool for advanced monitoring and control.
KADA-WELL
Die Height Indicator KDH/L 1900 Series
Superior Precision, Durability, and Diagnostic Capability
🛡️ 30G Anti-Vibration · 🚦 Diagnostic Indicators · 🔗 Flexible PLC Integration
The New Standard for Professional Monitoring
The Kada-well 1900 Series is an evolution in die height monitoring technology, crafted for professionals and production lines that demand absolute reliability. Inheriting the proven 30G anti-vibration capability and convenient wireless setting, the 1900 Series is upgraded with a diagnostic indicator system (RUN/ERR/REV) and powerful signal outputs.
This is not just a display unit, but an intelligent monitoring and diagnostic hub that provides visual data and deep integration capabilities with the press machine's control system.
Advanced Features of the 1900 Series
🛡️ Superior Durability (30G)
Heavy industrial-grade 30G anti-vibration capability ensures the device operates stably and durably in the harshest stamping environments.
🚦 Visual Monitoring & Diagnostics
Displays 3 parameters (current, upper/lower limits) and 3 status lights (RUN/ERR/REV) for rapid machine status diagnosis.
📶 Safe Wireless Setting
The external wireless setter allows technicians to calibrate parameters safely, quickly, and conveniently.
🔗 Robust System Integration
Powerful AC (240V/500mA) and DC (30V/200mA) contact outputs are ready for deep integration into the press machine's PLC system.
PRESTEC - Your Integration & Technical Support Partner
As the official distributor of Kada-well in Vietnam, PRESTEC provides not just the product, but a complete service package:
- Solution Consulting: We help you select the right model and options (e.g., 0.001mm accuracy) for your needs.
- Installation & Integration: We install the device on your press and connect the signals to your PLC system.
- Operational Support: We provide training on using the wireless setter and offer prompt technical support.
Equip Your Press with a Professional Monitoring Tool
Contact PRESTEC today for a consultation and quote for the Kada-well 1900 Series Die Height Indicator.
Hotline: +84 795 215 864 | Email: Sales@suamaycongcu.com
REQUEST A QUOTEDetailed Technical Specifications
| Power Supply | DC 24V (±10%) |
| Power Consumption | 3W |
| Shock Resistance | 30G |
| Protection Class | IP65 |
| Max Rotation Speed | 1200 RPM |
| Operating Temperature | -20°C to +70°C |
| Display Precision | 0.01mm [Optional 0.001mm] |
| Display Range | 0.01-999.99mm [Optional 0.001-99.999mm] |
| Setting Mode | External wireless setting device |
| Display Group | 3 LED groups (Current value, Upper limit, Lower limit) |
| Status Indicators | 3 LEDs: RUN (Operating), ERR (Error), REV (Reverse) |
| Output Contact (AC) | 2 sets of normally closed contacts (NC), Voltage AC240V, Current 500mA |
| Output Contact (DC) | 2 sets of normally closed contacts (NC), Voltage DC30V, Current 200mA (NPN or PNP) |
*Parameters in brackets [...] are options that need to be customized in advance.
