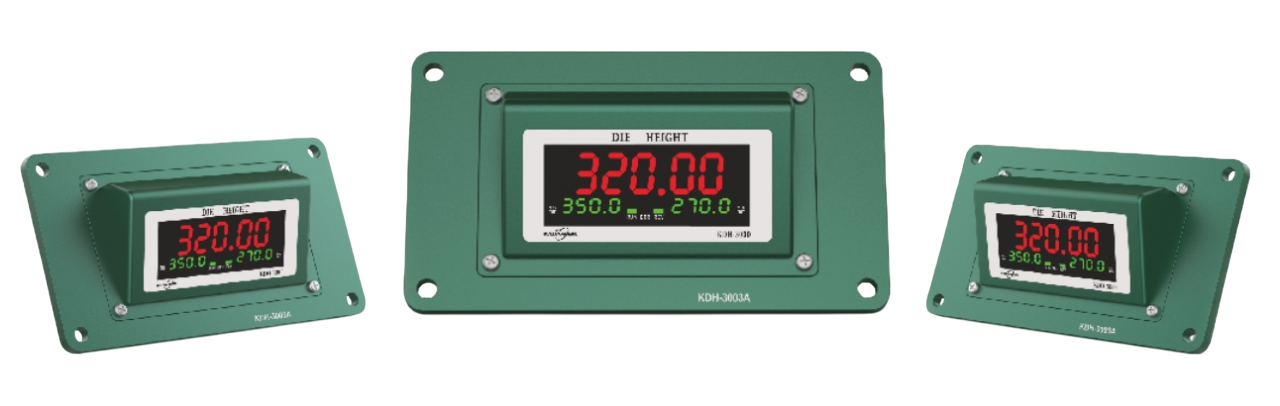

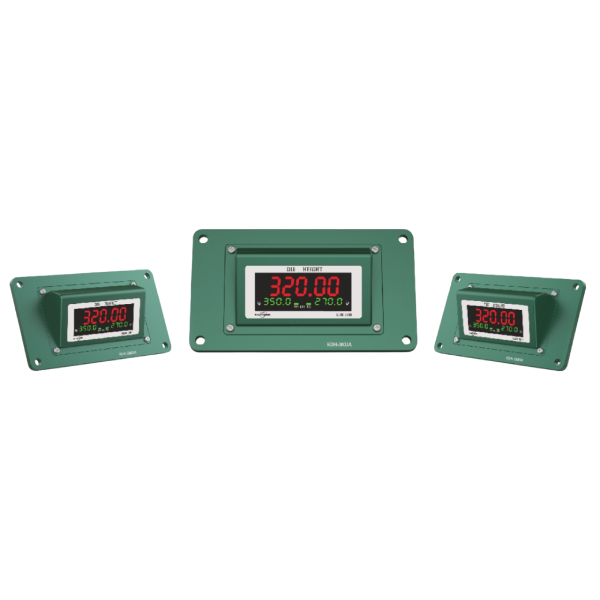

Kada-well 3000 die height indicator
-
Views:
74 -
Product Code:
KDH/L-3000 -
Price:
Contact
The Kada-well 3000 Series is a flagship die height indicator, engineered for the Smart Factory (Industry 4.0) era. Built on an ultra-durable platform with 30G shock resistance and an IP65 rating, the 3000 Series provides precise monitoring and instant fault diagnosis via its intelligent indicator system (RUN/ERR/REV). The wireless setting feature ensures safety and flexibility. With powerful AC/DC signal outputs, the device is ready for deep integration into PLC systems and factory-wide monitoring networks, making it an indispensable tool for production optimization.
KADA-WELL
Die Height Indicator 3000 Series
The Connectivity Flagship - Ready for the Smart Factory
🛡️ 30G Anti-Vibration · 🚦 Diagnostic Indicators · 🌐 IoT Ready
The Flagship Generation for the Industry 4.0 Era
The Kada-well 3000 Series represents the future of press monitoring, a device designed not just to display, but to connect and communicate within a smart factory environment.
While upholding the core values that define Kada-well, such as military-grade 30G durability and safe wireless setting, the 3000 Series is built with a vision for integration. Its powerful signal outputs and intelligent diagnostic light system make it a critical link in automated data collection and production control systems.
✨ Features of the Leading Generation
🛡️ Superior Durability (30G)
A 30G anti-vibration rating and IP65 protection ensure the device operates stably and durably in the harshest stamping environments.
🚦 Instant Monitoring & Diagnostics
Displays 3 parameters (current, upper/lower limits) along with 3 status lights (RUN/ERR/REV) for rapid machine status diagnosis.
📶 Safe & Fast Wireless Setting
The external wireless setter allows technicians to calibrate parameters safely, quickly, and conveniently.
🌐 Ready for the Smart Factory
Powerful AC/DC contact outputs are ready for deep integration into PLC, SCADA, and Industrial IoT platforms.
PRESTEC - Your Integration & Technical Support Partner
As the official distributor of Kada-well in Vietnam, PRESTEC provides not just the product, but a complete service package:
- Solution Consulting: We help you select the right model and options for the 3000 Series.
- Installation & Integration: We install the device on your press and connect the signals to your PLC system.
- Operational Support: We provide training on using the wireless setter and offer prompt technical support.
Equip Your Press with the Latest Flagship Monitor
Contact PRESTEC today for a consultation and quote for the Kada-well 3000 Series die height indicator.
Hotline: +84 795 215 864 | Email: Sales@suamaycongcu.com
REQUEST A QUOTEDetailed Technical Specifications
| Power Supply | DC 24V (±10%) |
| Power Consumption | 3W |
| Shock Resistance | 30G |
| Protection Class | IP65 |
| Max Rotation Speed | 1200 RPM |
| Operating Temperature | -20°C to +70°C |
| Display Precision | 0.01mm [Optional 0.001mm] |
| Display Range | 0.01-999.99mm [Optional 0.001-99.999mm] |
| Setting Mode | External wireless setting device |
| Display Group | 3 LED groups (Current value, Upper limit, Lower limit) |
| Status Indicators | 3 LEDs: RUN (Operating), ERR (Error), REV (Reverse) |
| Output Contact (AC) | 2 sets of normally closed contacts (NC), Voltage AC240V, Current 500mA |
| Output Contact (DC) | 2 sets of normally closed contacts (NC), Voltage DC30V, Current 200mA (NPN or PNP) |
*Parameters in brackets [...] are options that need to be customized in advance.
