The Option Boards for the NEW SELBER Ⅲ RM-3000 are a modular upgrade solution, allowing users to customize and expand their press analysis capabilities. By installing these specialized boards into the available slots, you can add crucial measurement functions such as load monitoring (Load), die temperature (Temperature), shock/vibration (Shock), voltage/current signals (Voltage/Current), and more. This transforms the RM-3000 into a comprehensive diagnostic system, enabling deeper analysis of root causes for defects and precise process optimization.
RIKEN KEIKI NARA
Option Boards for NEW SELBER Ⅲ
Expand and Customize the Analysis Capabilities of your RM-3000
⚙️ Diverse Measurements · 🔌 Easy Upgrades · 📈 In-depth Analysis
Build Your Own Custom Measurement System
The NEW SELBER Ⅲ RM-3000 analysis device is designed with a flexible, modular architecture. With its expansion slots, you can select and combine the Option Boards below to meet your exact analysis needs—from basic BDC measurement to monitoring load, temperature, vibration, and much more.

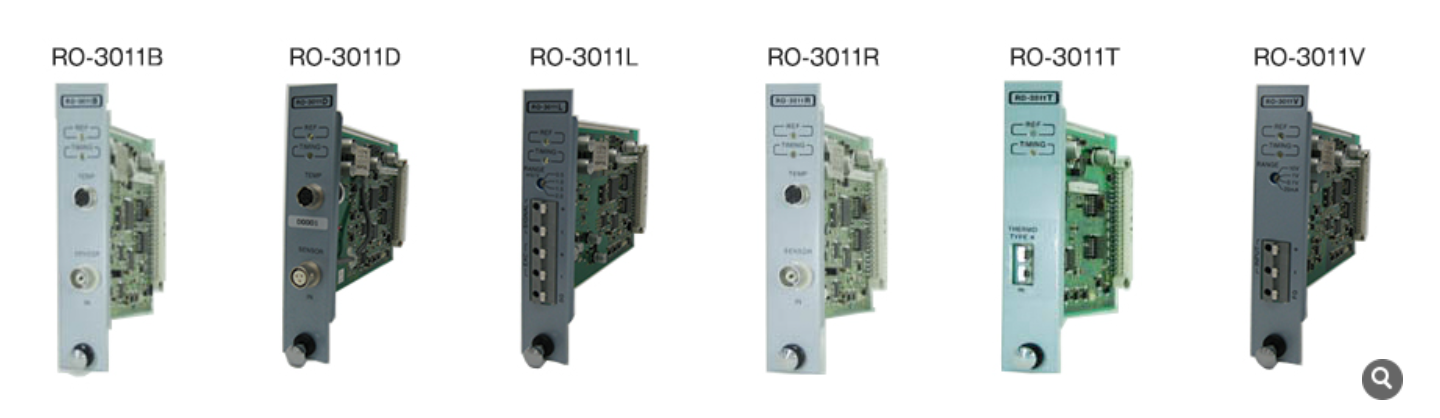

.png)
BDC Board (Model: RO-3011B)
A specialized board for high-precision measurement of Bottom Dead Center (BDC) variation.
| Resolution | RM-3000: 1μm / RM-3000J: 0.1μm |
| Measuring Range | 500-2000μm |
Long Range Board (Model: RO-3011D)
A board for applications requiring a wider BDC measurement range.
| Measuring Range | 2,000-10,000μm |
| Repeatability | ±10μm |
Load Board (Model: RO-3011L)
A specialized board for connecting to strain gauge sensors and monitoring load (stamping force). *Sensor must be prepared separately.
| Measuring Range | 0.000-999.999kN |
| Accuracy | ±1% F.S. |
Relate Board (Model: RO-3011R)
A board used to measure the relative displacement between two different points on the press or die.
| Resolution | RM-3000: 1μm / RM-3000J: 0.1μm |
| Measuring Range | 500-2000μm |
Temperature Board (Model: RO-3011T)
A temperature measurement board, supplied with a K-type thermocouple sensor.
| Measuring Range | -5 - 300℃ |
| Resolution | 1℃ |
Voltage/Current Board (Model: RO-3011V)
A board for measuring voltage or current signals from other sensors. Provides DC24V power supply for external sensors.
| Measuring Range | ±10V, ±1V, ±0.1V, 20mA |
| Sensor Power Supply | DC24V 200mA Max. |
Shock Board (Model: RO-3011S)
A board for measuring shock/vibration (acceleration). *Sensor is optional and sold separately.
| Measuring Range | ±300G |
| Resolution | 0.1G Min. |
PRESTEC - Your Configuration Expert
Choosing and combining the right boards requires a deep understanding of the application. The PRESTEC engineering team will help you:
- Analyze Needs: Identify the parameters you need to measure to solve your problem.
- Configure the System: Help you select the right number and type of boards, avoiding waste.
- Install & Train: Set up the system and train your team to fully harness the power of the RM-3000.
Official Technical Partner
Committed to delivering practical value from Riken Keiki Nara's technology.
Customize an Analysis System for Your Workshop
Contact PRESTEC for a consultation on the RM-3000 option boards and to build a measurement solution that's right for you.
Hotline: +84 795 215 864 | Email: Sales@suamaycongcu.com
REQUEST A CONSULTATIONTechnical Specifications for RM-3000 Expansion Boards
Please purchase optional boards for the 6 empty slots according to your measurement needs.
1. BDC Board (Model: RO-3011B)
A specialized board for measuring and analyzing the Bottom Dead Center (BDC).
| Measurement Resolution | RM-3000: 1μm RM-3000J: 0.1μm |
| Measuring Range | 500 - 2000μm |
| Linear Range | 700 - 1700μm |
| Linearity | 1% of F.S. |
| Temperature Drift (In case of precision compensation) |
Sensor part: 0.1μm/℃ Amplifier part: 1.0μm/℃ |
| Operating Temperature | 5 - 45℃ (No Condensation) |
2. Long Range Board (Model: RO-3011D)
Board for long-range measurement.
| Measuring Range | 2,000 - 10,000μm |
| Linear Range | 2,000 - 10,000μm |
| Linearity | 1% of F.S. |
| Repeatability | ±10μm |
| Response Frequency | 500Hz |
| Temperature Drift (In case of precision compensation) |
Sensor part: 1μm/℃ Amplifier part: 10μm/℃ |
| Operating Temperature | 5 - 45℃ (No Condensation) |
3. Load Board (Model: RO-3011L)
Board for measuring and analyzing load (stamping force).
| Measuring Range | 0.000 - 999.999 kN |
| Measurement Accuracy | ±1% of F.S. |
| Response Frequency | 10KHz or less |
| Delay Time | 50μsec |
| Resolution | 0.001kN Min. (Depending on the full-scale setting) |
| Applied Voltage | DC10V |
| Compatible Sensors (Please prepare separately) |
Compatible with sensors having the following outputs: 0.5mV/V, 1.0mV/V, 1.5mV/V, 2.0mV/V |
| Operating Temperature | 5 - 45℃ (No Condensation) |
4. Relate Board (Model: RO-3011R)
Board for correlation measurement.
| Measurement Resolution | RM-3000: 1μm RM-3000J: 0.1μm |
| Measuring Range | 500 - 2000μm |
| Linear Range | 700 - 1700μm |
| Linearity | 1% of F.S. |
| Temperature Drift (In case of precision compensation) |
Sensor part: 0.1μm/℃ Amplifier part: 1.0μm/℃ |
| Operating Temperature | 5 - 45℃ (No Condensation) |
5. Temperature Board (Model: RO-3011T)
Board for measuring and recording temperature.
| Measurement Accuracy | ±3℃ (Does not include sensor drift) |
| Measuring Range | -5 - 300℃ |
| Resolution | 1℃ |
| Attached Sensor | K-type thermocouple (exposed type), heat resistance 150℃, cable length 5m |
| Operating Temperature | 5 - 45℃ (No Condensation) |
6. Voltage/Current Board (Model: RO-3011V)
Board for measuring voltage and current signals.
| Measurement Resolution (By switching the range) |
±10V range: 0.01V ±1V range: 0.001V ±0.1V range: 0.001V 20mA range: 0.01mA |
| Measurement Accuracy | ±3% of F.S. |
| Response Frequency | 100KHz or less |
| Input Resistance | Voltage input: 200kΩ Current input: 200Ω |
| Absolute Maximum Rating | Voltage input: 15V Current input: 30mA |
| Power Supply for Sensor | DC24V, 200mA Max. |
| Operating Temperature | 5 - 45℃ (No Condensation) |
7. Shock Board (Model: RO-3011S)
Board for measuring shock and vibration.
| Measurement Resolution | 0.1G Min. (Depending on the full-scale setting) |
| Measuring Range | ±300G |
| Measurement Accuracy | ±1% of F.S. |
| Sensor Applied Voltage | DC20V constant current 1mA |
| Sensor | Optional (sold separately) |
| Operating Temperature | 5 - 45℃ (No Condensation) |
*The specifications and contents described are subject to change without prior notice.
