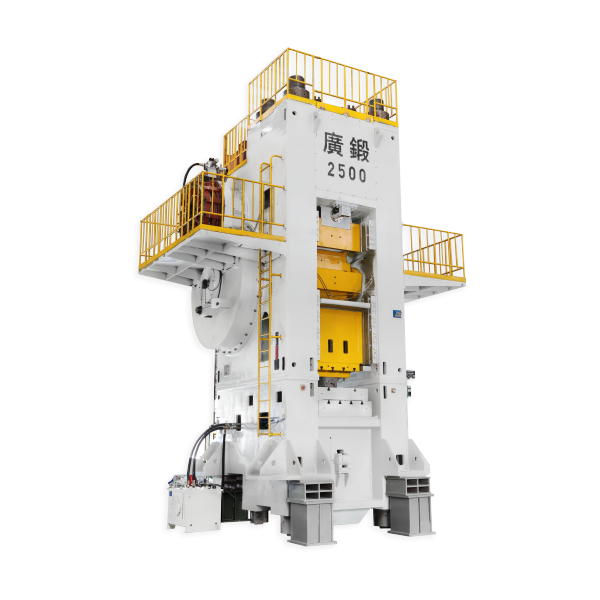

Guangduan GK — Knuckle-Joint Press
🦾 High peak force at BDC · 🎯 Natural dwell (~1/18 rev) · 🧱 Rigid one-piece frame

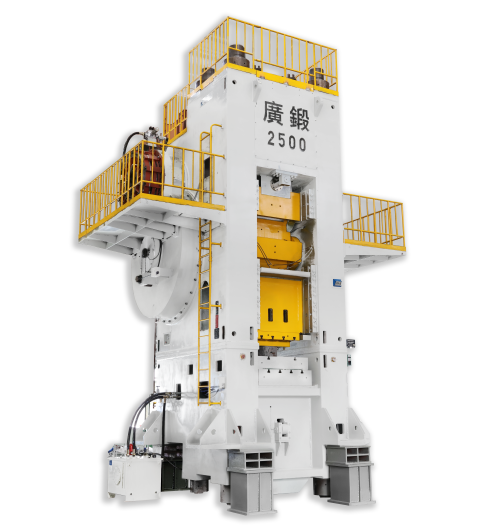

The GK series adopts a knuckle-joint mechanism that provides a naturally low speed and dwell near BDC to generate very high peak force, suppress springback and refine surface finish—ideal for coining, sizing, cold extrusion and warm forging. Models GK-400…GK-1600 use a one-piece rigid frame (very large sizes use split frames) with PLC control. Standard equipment includes electric die-height with 0.01 mm resolution, centralized circulating lubrication, slide/bolster balancing, mechanical lower knock-out and overload protection. Depending on size, the press is fitted with an integrated wet clutch/brake or a separate dry friction unit, and large models support inverter speed control.
🌟 Key Benefits
Peak force & surface quality
Natural dwell at BDC enables dense coining/sizing with minimal springback.
Precise control
PLC, electronic cam and crank-angle display synchronize blow-off, lube, ejectors and feeding.
Rigid structure & guidance
One-piece frame, four-side slide gibs and balancing ensure long-term geometric stability.
Safety & efficiency
Centralized lube, hydraulic overload protection and flexible interlocks; options for load monitoring and QDC.
🧩 Technology & Operating Advantages
- ⏱️Natural dwell near BDC (~1/18 revolution) — maintain pressure long enough for dense forming.
- 📏0.01 mm electric die height — fast, repeatable setup with interlock.
- 🛢️Centralized circulating lubrication — reduces wear on the drivetrain and gibs.
- 🧲Wet or dry clutch/brake (by size) — smooth engagement and durability for heavy duty cycles.
- ⚡Inverter speed control (large models) — tune SPM to the process window.
⚙️ Standard Configuration
| 🛞Friction clutch/brake (integrated wet type or separate dry type by model) | ⚙️Electric shut-height adjustment with lock supervision |
| 🧴Centralized lubrication system | 🎯Slide & bolster balancing |
| ⬇️Mechanical lower knock-out | 📟Electronic cam control / touch display |
| 🔢0.01 mm digital die-height display | 🖥️Programmable PLC with centralized HMI panel |
| 🔄6-digit counter & preset counter | 🔌Air source port & blow-off nozzle; main motor reverse circuit |
| 🧯Overload protection & safety interlocks | 🔩Foundation bolts; manuals & accuracy inspection report |
🛠️ Optional Upgrades
| 🛡️Safety light curtain | ⬆️Upper knock-out (on slide) |
| 📈Inverter speed control (by capacity range) | 📊Load monitor |
| 🤖Automation feeding equipment | ⚡QDC — quick die change system |
| 💡Die lighting & convenience outlet | 🛢️Hydraulic lower knock-out |
| 🧱Anti-vibration pads / Foot switch 🦶 | 🧿Die safety monitor / misfeed detection I/O |
📌 Conclusion
Guangduan GK delivers a natural dwell at BDC, very high peak force and stable guidance for demanding coining, sizing, extrusion and warm/cold forging. With PLC control, centralized lubrication, overload protection and comprehensive automation options, GK is a reliable choice for consistent quality and high OEE.
📞 Need the right GK configuration for your parts?
We can specify capacity, stroke, ejectors, feeding automation and QDC tailored to your coining/sizing/extrusion process.
Hotline: +84 795 215 864 | Email: Sales@suamaycongcu.com
REQUEST CONSULTATION & QUOTEGK Series Technical Specifications
Bảng Thông Số Kỹ Thuật Dòng GK
| Thông sốSpecification | Đơn vịUnit | GK-400 | GK-630 | GK-800 | GK-1000 | GK-1200 | GK-1600 | GK-2500 | GK-5000 |
|---|---|---|---|---|---|---|---|---|---|
| Lực danh nghĩaNominal Force | kN | 4000 | 6300 | 8000 | 10000 | 12000 | 16000 | 25000 | 50000 |
| Hành trình lực danh nghĩaNominal Force Stroke | mm | 6 | 8 | 10 | 10 | 10 | 10 | 10 | 10 |
| Hành trình đầu máySlide Stroke | mm | 160 | 160 | 180 | 200 | 250 | 250 | 250 | 350 |
| Số lần hành trình (Liên tục)Strokes per Minute (Continuous) | SPM | 25~35 | 25~35 | 30~35 | 25~30 | 25~30 | 25~30 | 25~30 | 14~16 |
| Số lần hành trình (Ngắt)Strokes per Minute (Intermittent) | SPM | 16 | 12 | 12 | 12 | 12 | 12 | 10 | 8 |
| Chiều cao khuôn tối đaMax. Die Height | mm | 500 | 550 | 600 | 600 | 600 | 650 | 650 | 800 |
| Điều chỉnh chiều cao khuônDie Height Adjustment | mm | 15 | 15 | 15 | 15 | 15 | 20 | 20 | 20 |
| Kích thước bàn máy (Trái-Phải)Bolster Size (Left-Right) | mm | 650 | 700 | 900 | 1000 | 1000 | 1000 | 1200 | 1600 |
| Kích thước bàn máy (Trước-Sau)Bolster Size (Front-Back) | mm | 650 | 700 | 900 | 1000 | 1000 | 1100 | 1200 | 1500 |
| Kích thước mặt trượt (Trái-Phải)Slide Area (Left-Right) | mm | 450 | 540 | 800 | 850 | 850 | 850 | 1000 | 1400 |
| Kích thước mặt trượt (Trước-Sau)Slide Area (Front-Back) | mm | 500 | 540 | 800 | 900 | 900 | 900 | 1000 | 1200 |
| Kích thước cửa hông (Trái-Phải)Side Opening (Width) | mm | 400 | 400 | 600 | 600 | 600 | 600 | 600 | 600 |
| Kích thước cửa hông (Cao)Side Opening (Height) | mm | 500 | 500 | 600 | 600 | 600 | 600 | 600 | 700 |
| Công suất động cơ chínhMain Motor Power | kW | 30 | 45 | 55 | 75 | 75 | 110 | 160 | 280 |
| Công suất điều chỉnh trượtSlide Adjustment Motor Power | kW | 2.2 | 2.2 | 3 | 3 | 3 | 3 | 5.5 | 7.5 |
| Lực đẩy trênUpper Knock-out Force | kN | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Hành trình đẩy trênUpper Knock-out Stroke | mm | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
| Lực đẩy dướiLower Knock-out Force | kN | 200 | 400 | 400 | 500 | 500 | 500 | 600 | 600 |
| Hành trình đẩy dướiLower Knock-out Stroke | mm | 60 | 80 | 80 | 110 | 110 | 110 | 110 | 150 |
| Trọng lượng tịnh (xấp xỉ)Net Weight (Approx.) | t | 25 | 35 | 65 | 85 | 98 | 135 | 228 | 400 |
| Áp suất khí nén sử dụngWorking Air Pressure | MPa | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
