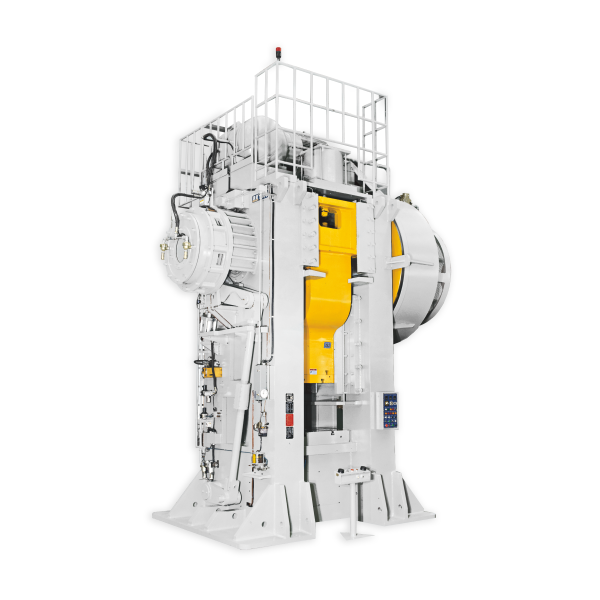

Guangduan HFP hot forging press
-
Views:
166 -
Product Code:
HFP -
Price:
Contact
COMPLIMENTARY PEACE OF MIND PACKAGE
- 🛡️
1. 18-Month Warranty Commitment to long-term interest protection.
- 🚑
2. 4-Hour Emergency Service Rapid response and on-site resolution.
- 📅
3. 3-Month Periodic Inspection Early detection of potential faults.
- 🛠️
4. 6-Month Periodic Maintenance Maintain optimal machine performance.
- ▶️
5. Operation Tutorial Videos Intuitive and easy-to-understand materials.
- 📝
6. Lifetime Maintenance Plan Support throughout the equipment lifecycle.
- ⚙️
7. Available Spare Parts Stock Instant replacement, minimized downtime.
- 👷
8. Expert Support Team Highly qualified technicians from Prestec.
Guangduan HFP — Hot/Warm Forging Press
🔥 Short die contact · 🧱 Rigid box frame · 🛡️ Long die life & safety
The HFP series is purpose-built for warm/hot forging and related operations such as hot sizing/straightening and hot trimming. The short die-contact time limits heat flow into the dies, extending die life and reducing thermal distortion. A rigid welded box frame delivers minimal deflection and stable guidance at elevated temperatures. Standard equipment includes PLC, 0.01 mm electric die height, centralized automatic lubrication, slide/bolster balancing, hydraulic overload protection and a hydraulic lower ejector. The drivetrain uses a separate dry friction clutch/brake for fast engagement under heavy thermal duty. Models ≥1000T support inverter speed control (optional on ≤800T).
🌟 Key Benefits
Short die contact = die life ↑
Less heat transfer into the die; reduced thermal cracking and wear.
Ultra-rigid box frame
Low deflection at hot loads keeps slide–bolster parallel and dimensions stable.
Dry clutch/brake (separate)
Fast engagement for heavy duty in hot environments; dual-solenoid safety.
Control & monitoring
PLC, cam control, hot-spot temperature monitoring, load monitor; SPM tuning via inverter.
🧩 Technology & Operating Advantages
- ⏱️Short die-contact time — limits heat flow, reduces sticking, extends die life.
- 📏0.01 mm electric die height — quick, repeatable setups with lock/supervision.
- 🛢️Centralized automatic lubrication — protects the drivetrain during hot duty.
- 🌡️Temperature monitoring at key points — overheat alarms keep operation stable.
- ⚡Inverter speed control — standard on ≥1000T, optional on ≤800T; tune SPM to your process window.
⚙️ Standard Configuration
| 🔩Separate dry friction clutch/brake (fast engagement for hot duty) | ⚙️Electric die height with 0.01 mm digital display |
| 🛢️Centralized automatic lubrication | 🎯Slide & bolster balancing |
| ⬇️Hydraulic lower ejector | 📟Mechanical cam control + digital temperature controller |
| 🧯Hydraulic overload protection & dual-solenoid | ⛔Top stop & two-stage anti-repeat |
| 🔢6-digit counter & preset counter | 🔌Air source & blow-off port; T-type two-hand station |
| 🖥️Programmable PLC with centralized HMI | 📘Manuals & accuracy inspection report; foundation bolts |
🛠️ Optional Upgrades
| ⚡Inverter speed control (optional for ≤800T) | 🛡️Safety light curtain & die safety monitoring |
| 📊Load monitor (force vs. stroke) | 🚨Misfeed I/O (faulty feed detection) |
| 💡Die lighting & convenience outlet | 🦶Foot switch |
| ⚙️Mechanical lower ejector (in place of hydraulic) | 🤖Automated feeding system / feeder interface |
📌 Conclusion
Guangduan HFP is the right choice for warm/hot forging and hot trimming/sizing where short die contact, die protection and high structural stability are critical. With a rigid frame, durable drivetrain and comprehensive control–safety–automation options, HFP boosts finished-part quality and overall OEE.
📞 Need help choosing the right HFP configuration?
We’ll specify capacity, stroke, ejectors, inverter, safety and feeding automation for your process.
Hotline: +84 795 215 864 | Email: Sales@suamaycongcu.com
REQUEST CONSULTATION & QUOTEHFP Series Technical Specifications
Bảng Thông Số Kỹ Thuật Dòng HFP
| Thông sốSpecification | Đơn vịUnit | HFP-400 | HFP-630 | HFP-800 | HFP-1000 | HFP-1600 |
|---|---|---|---|---|---|---|
| Lực danh nghĩaNominal Force | kN | 4000 | 6300 | 8000 | 10000 | 16000 |
| Hành trình lực danh nghĩaNominal Force Stroke | mm | 5 | 5 | 5 | 5 | 6 |
| Hành trình đầu máySlide Stroke | mm | 175 | 200 | 220 | 250 | 320 |
| Tốc độ hành trìnhStrokes per Minute | spm | 100 | 95 | 90 | 85 | 80 |
| Tốc độ hành trình hiệu dụngEffective SPM | spm | 18 | 18 | 18 | 16 | 16 |
| Chiều cao khuôn tối đaMax. Die Height | mm | 500 | 550 | 630 | 720 | 800 |
| Bề rộng tối đa của khuônMax. Die Width | mm | 290 | 290 | 350 | 400 | 400 |
| Điều chỉnh chiều cao khuônDie Height Adjustment | mm | 10 | 10 | 10 | 10 | 10 |
| Kích thước bàn máy (Trái-Phải × Trước-Sau × Dày)Bolster Size (L×W×T) | mm | 780×840×120 | 880×880×150 | 1000×1000×180 | 1200×1050×170 | 1200×1200×250 |
| Kích thước mặt trượt (Trái-Phải × Trước-Sau)Slide Area (L×W) | mm | 595×555 | 645×695 | 820×720 | 950×800 | 1080×1040 |
| Kích thước tấm trượt (Trái-Phải × Trước-Sau × Dày)Slide Plate Size (L×W×T) | mm | 595×555×90 | 645×635×110 | 820×720×120 | 950×800×120 | 1080×1040×150 |
| Đường kính lỗ chàyKnock-out Hole Diameter | mm | Φ50 | Φ60 | Φ60 | Φ60 | Φ60 |
| Kích thước cửa hông (Trước-Sau × Cao)Side Opening (W×H) | mm | 500×420 | 500×500 | 600×600 | 700×650 | 750×700 |
| Lực đẩy trênUpper Knock-out Force | kN | 60 | 60 | 70 | 80 | 80 |
| Hành trình đẩy trênUpper Knock-out Stroke | mm | 20 | 20 | 25 | 30 | 40 |
| Lực đẩy dướiLower Knock-out Force | kN | Hydraulic 200 | Hydraulic 250 | Hydraulic 300 | Hydraulic 300 | Hydraulic 300 |
| Hành trình đẩy dướiLower Knock-out Stroke | mm | 40 | 40 | 40 | 40 | 40 |
| Công suất động cơ chínhMain Motor Power | kW | 30 | 37 | 45 | 55 | 110 |
| Công suất motor chỉnh trượtSlide Adjustment Motor Power | kW | 0.75 | 0.75 | 1.5 | 3 | 5 |
| Áp suất khí nénAir Pressure | MPa | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Kích thước máy (Trái-Phải × Trước-Sau × Cao)Overall Dimensions (L×W×H) | mm | 3255×2135×4955 | 3885×2290×5455 | 4260×2820×5870 | 4640×3130×6290 | 4520×3885×7235 |
| Khối lượng máy (xấp xỉ)Machine Weight (Approx.) | kg | 38000 | 55000 | 65000 | 89000 | 110000 |
