YNLF-HD Series: Heavy-Duty Gear-Driven NC Feeder (9mm)

Views:
114
Product Code:
YNLF-HD
Price:

Contact

Description:

The Youngrim YNLF-HD Series is a heavy-duty NC leveller feeder engineered for thick materials ranging from 1.0mm to 9.0mm. Unlike standard models, it features a robust gear-driven system and high-capacity AC Servo motors (7Kw-11Kw) to ensure precise feeding of heavy coils. Standard automated features include motorized Pass Line and levelling roll adjustments , along with hydraulic expansion, making it a powerful solution for demanding stamping lines.

Heavy Duty NC Servo Leveller Feeder – Youngrim YNLF-HD Series

Powerful gear-driven solution for materials up to 9.0mm thick.

Brand: Youngrim (Korea)

Youngrim's YNLF-HD Series NC Leveller Feeder is a heavy-duty equipment line designed to meet rigorous durability and traction requirements for thick materials. With a gear-driven mechanism, the YNLF-HD ensures more stable and powerful operation compared to conventional drive systems.

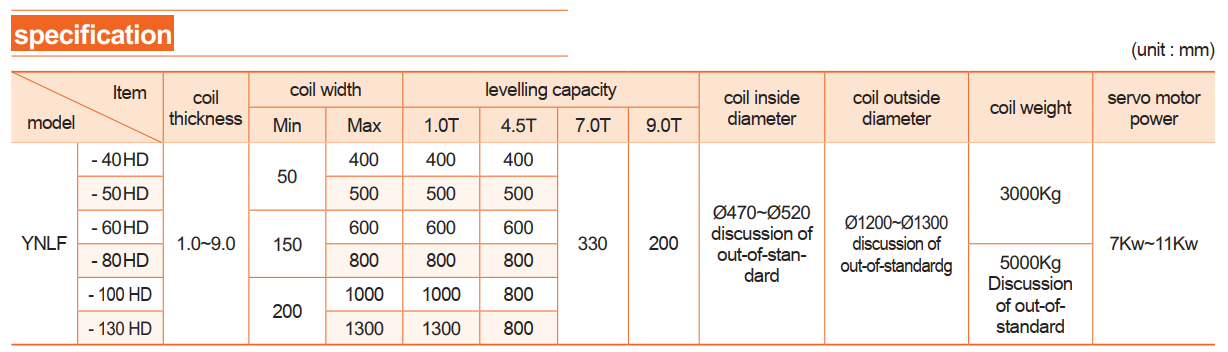

This product series supports material thicknesses from 1.0mm to 9.0mm, suitable for stamping thick parts requiring high levelling force. The design is optimized through 3D stress analysis, providing superior rigidity for the entire system.

✨Key Features of the YNLF-HD Series

1. Powerful Gear Drive

Unlike lighter series, the YNLF-HD uses a gear driven system to ensure high torque and durability when processing thick steel up to 9.0mm.

2. Automated Adjustment

Pass Line height and Levelling Roll pressure adjustments are made easily and precisely thanks to a motor system controlled via a central control panel.
