YNRF Series: NC Servo Roll Feeder (Box Type, 0.3-3.2mm)

Views:
112
Product Code:
YNRF
Price:

Contact

Description:

The Youngrim YNRF Series (Box Type) NC Roll Feeder is a compact and economical servo feeding solution. Specialized for 0.3-3.2mm materials , the YNRF features motorized Pass Line adjustment, reducing setup time. Developed with Youngrim's in-house numeric control, it ensures precise, synchronized operation with the press and is easy for unskilled operators.

NC Servo Feeder (Box Type) – Youngrim YNRF Series

A precise, compact, and economical feeding solution.

Brand: Youngrim (Korea)

Youngrim's YNRF Series (Box Type) is a standalone NC Roll Feeder designed to deliver high performance in a compact and economical structure. Instead of integrating a leveller, the YNRF focuses entirely on precise feeding using an AC Servo motor.

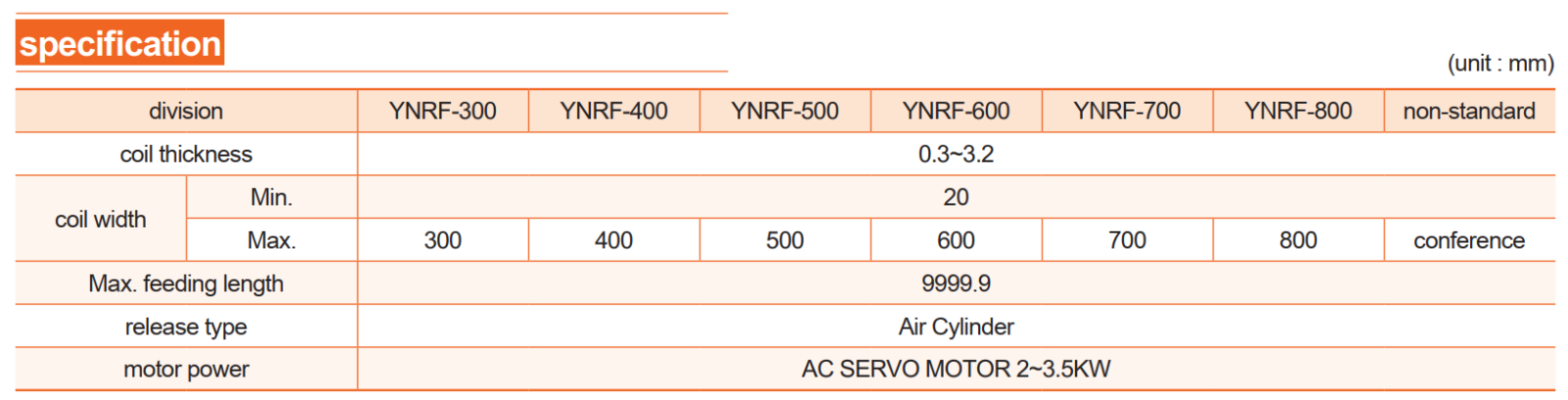

This equipment is specialized for materials with thicknesses from 0.3mm to 3.2mm. The greatest strength of this series is the ability to automatically adjust the Pass Line (feeding height) with a motor, allowing for quick setup and synchronization with the press machine without complex manual adjustments.

✨Key Features of the YNRF Series

1. Automatic Pass Line Adjustment

The Pass Line can be easily adjusted up and down by a motor via the control panel. This is a premium feature that significantly reduces die set-up time.

2. Compact & Easy to Operate

Using a digital controller developed by Youngrim, the machine has a compact, economical design. Speed, actual values, and movement are all displayed visually, allowing non-experts to operate it.
