Youngrim's YNLF-M Series NC Leveller Feeder is a standard product line, offering a perfect balance between performance, automated features, and cost. This is the most popular choice for stamping applications with common material thicknesses.
.png)

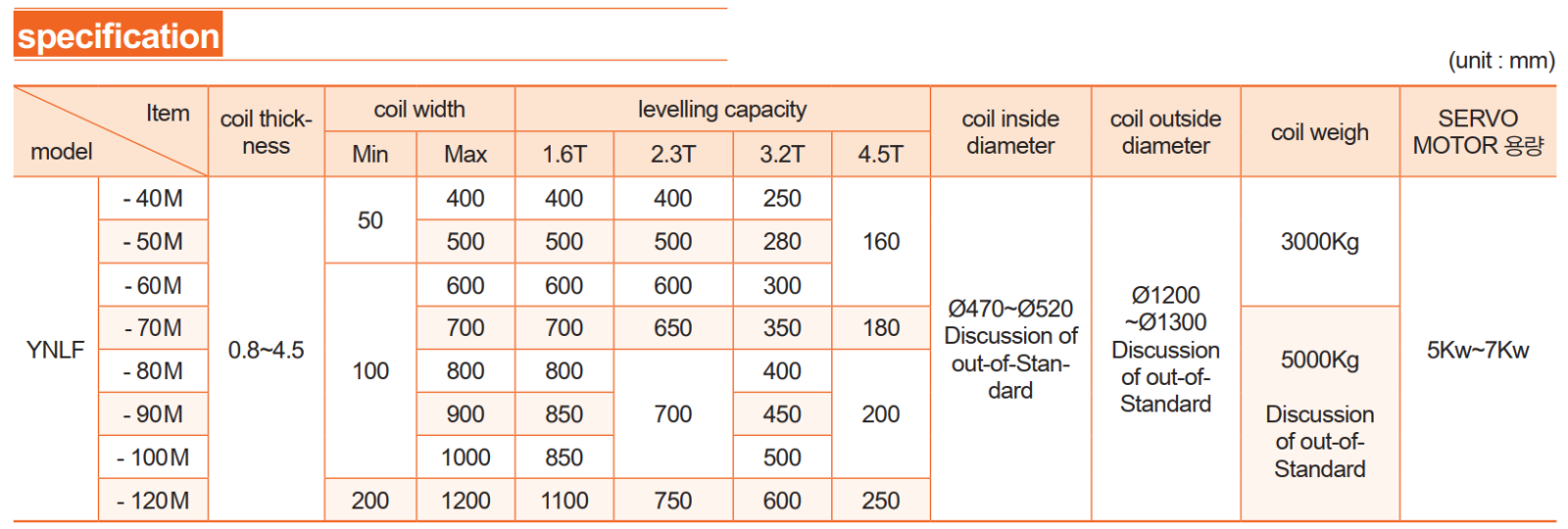

The YNLF-M series handles materials with thicknesses from 0.3mm to 4.5mm, with diverse widths from 400mm to 1300mm. The equipment is designed for high durability, having undergone 3D stress analysis before production to ensure rigidity.
✨Key Features of the YNLF-M Series
1. Motorized Adjustment
Like the higher-end series, the YNLF-M allows for easy adjustment of the Pass Line height and Levelling roll reduction via motors through the control panel, saving die setup time.
2. Convenient Operation
Standard equipped with a hydraulic Coil Insert Device and hydraulic expansion system, making coil changing tasks easier and safer.
⚙️Equipment Configuration
Standard Configuration
- • Hydraulic expansion
- • Coil Guide
- • Motorized Snub Device
- • Loop control by Photo Sensor
- • Hydraulic coil insert support device
- • Motorized levelling roll & Pass Line adjustment
- • Hard chrome plated feed & levelling rolls
Advanced Options (Optional)
- • Hydraulic Head open
- • Coil Car
- • Urethane feed roll
- • Multi-step feeding mode
- • Zigzag Feeder & Uncoiler Zigzag
- • Scrap end cutting
.png)
