Youngrim's YPL (Precision Leveller) Series is specifically designed to meet the most stringent requirements for material flatness. With a high-precision mechanical system, the YPL is the ideal choice for electronic component and automotive manufacturing applications that demand a perfect material surface before stamping.
.png)
The machine is equipped with 19 hard chrome plated levelling rolls as standard. This system, combined with backup rolls, reduces the load on the main levelling rolls, thereby significantly improving material flatness.
✨Key Features of the YPL Series
1. Circulation Lubrication System
Equipped with a forced circulation oil pump to reduce heat generation and increase the lifespan of the gear system.
2. Durable Cleaning Brushes
High-strength brass brushes are installed at the rotating parts of the levelling rolls, offering good wear resistance for semi-permanent use.
3. Precise Control
Levelling roll pressure is accurately displayed on dial gauges mounted at the front and rear of the machine.
⚙️Configuration & Options
Standard Configuration
- • 19 Levelling Rolls
- • High-strength brass brushes
- • Circulation oil pump
- • Hard chrome plated levelling rolls
Advanced Options
- • Integrated with Uncoiler (Precision Leveller with Uncoiler)
- • Touch type Loop control
- • Reverse adjustment roll

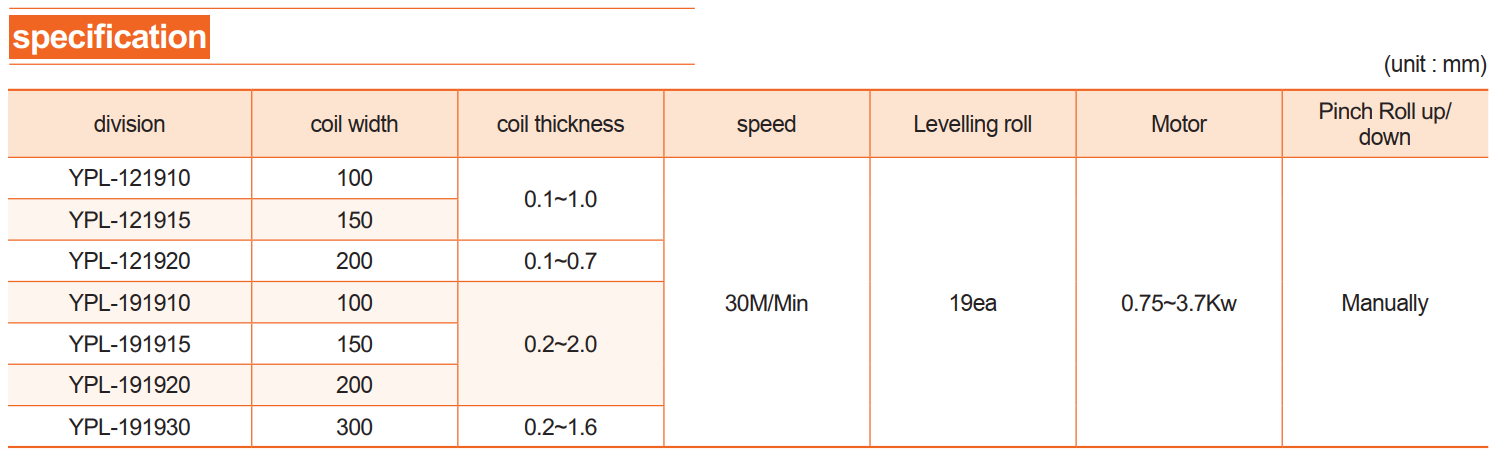

General Specifications:
- • Speed: 30 M/Min
- • Number of Levelling Rolls: 19 rolls (ea)
- • Pinch Roll Up/Down: Manual (Manually)
* Specifications based on material with tensile strength 40-45 Kg/mm².
