Youngrim's YUL (Uncoil Leveller) series is a 2-in-1 system, combining the functions of an uncoiler and a leveller on the same machine frame. This design significantly saves factory floor space compared to using two separate machines, while also simplifying the operation process.
.png)

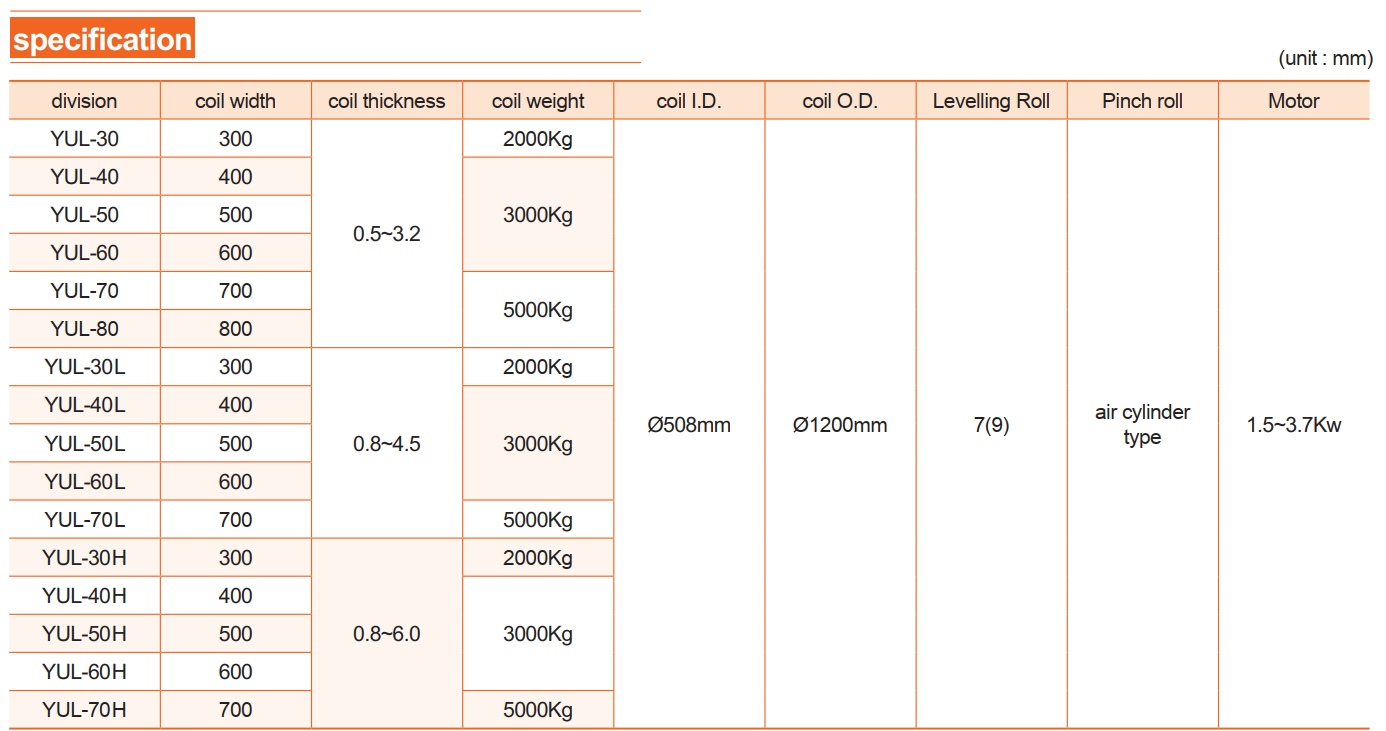

The YUL series is capable of handling a variety of materials with thicknesses from 0.5mm to 6.0mm and widths up to 800mm. The machine is equipped with 7 hard chrome plated levelling rolls as standard, ensuring high flatness for the material before feeding into the press machine.
✨Key Features of the YUL Series
1. Integrated Design (2-in-1)
Perfect combination of coil holder and levelling unit, optimizing installation space and reducing initial investment costs.
2. Diverse Configurations
Offers various models (Standard, L Series, H Series) to suit different material thickness ranges, from 0.5mm to 6.0mm.
⚙️Equipment Configuration
Standard Configuration (Basic Package)
- • Manual expansion
- • 7 Levelling Rolls
- • Aluminum A shape coil support device
- • Hard chrome plated levelling rolls
- • Feeding speed: 20m/min
Advanced Options (Optional)
- • Inverter driven operation
- • Hydraulic expansion
- • Double Uncoiler
- • Touch type Loop control
- • Upgrade to 9 or 11 levelling rolls
